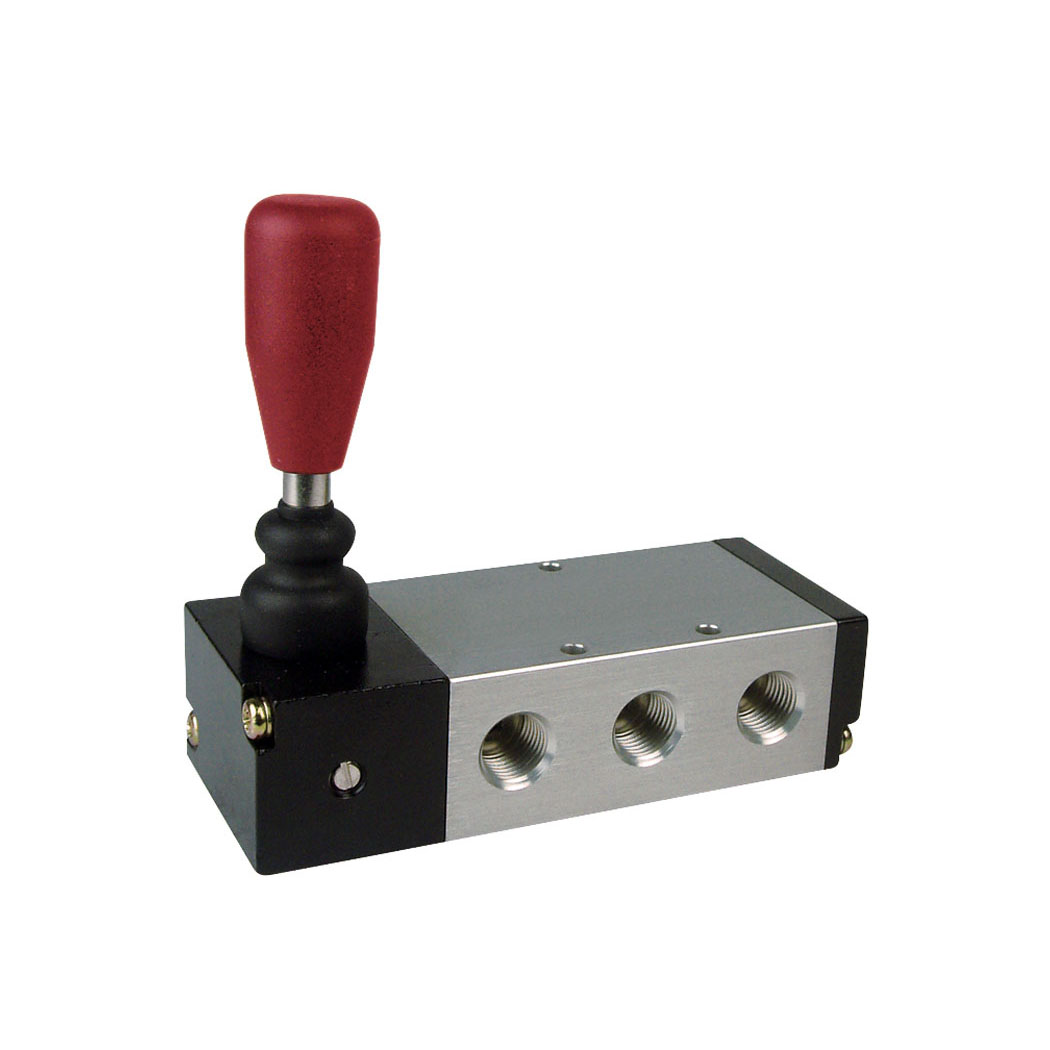

• Spring return – 5 ways / 3 positions
• Cv: 1.94
• Port size: 3/8 (F) NPT
• Lever: Red
• Fluid: Filtered air (lubricated or oil-free)
• Operating Pressure Range: 0 to 128 PSI
• Temperature Range: -10 to 60 °C
• 10 000 000 CYCLES
Material(s):
• Body: Anodized Aluminum
• Seals: Oil resistant rubber seals
• Spool: Aluminum
• Compact design
• High flow
• Highly reliable spool technology
• Standard plug connector (DIN type)
• Pushing and holding the button shifts the spring return valve. When the button is released, the valve returns to its normal positions
HOW IT WORKS
Pushing the lever shifts the spring return valve
When the lever is released, the valve returns to its normal position
