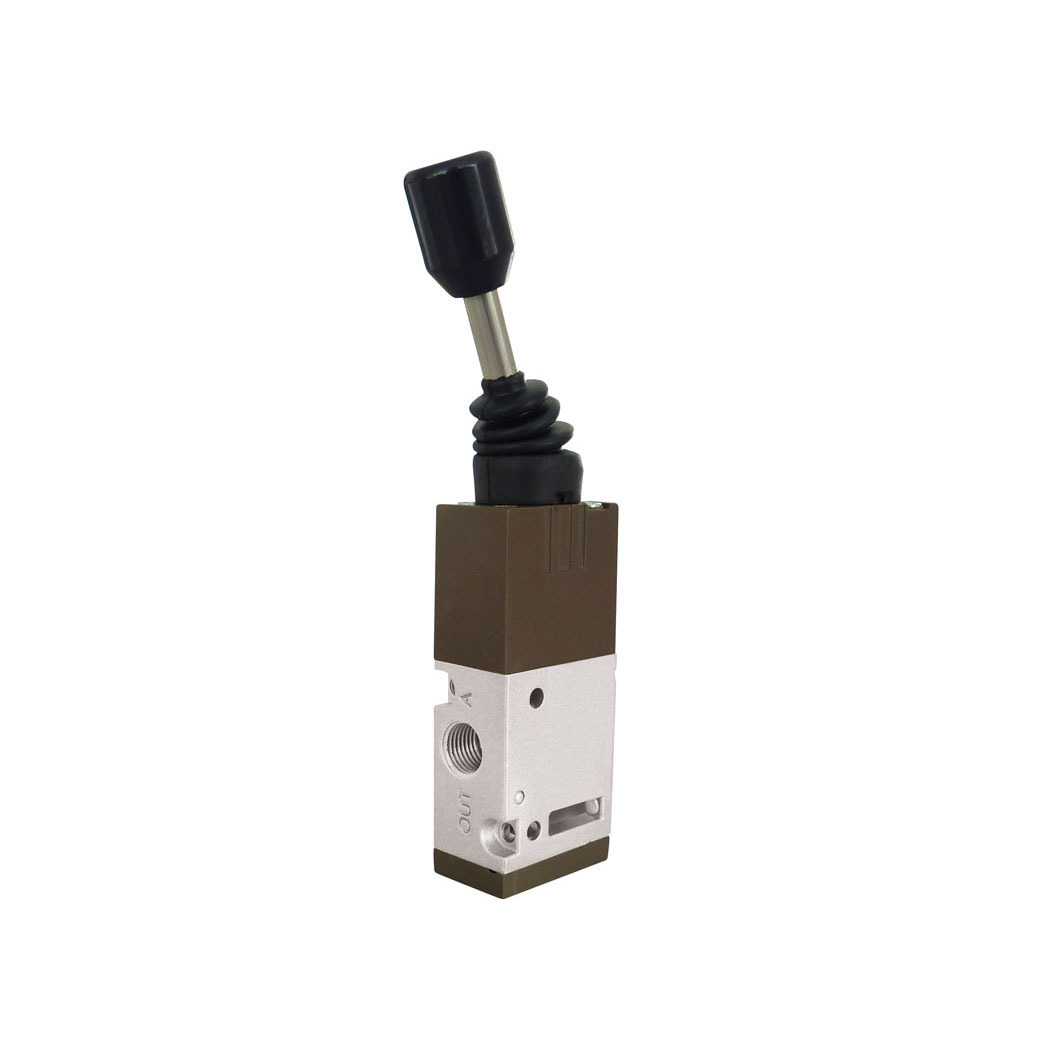

• Detented 3 ways / 2 positions
• Cv: 1.00
• Port size: 1/4 (F) NPT
• 3 WAYS / 2 positions
• 15 000 000 CYCLES
• Fluid: Filtered air (lubricated or oil-free)
• Operating Pressure Range: 22 to 145 PSI
• Temperature Range: 5 to 60 °C
Material(s):
• Body, End Caps: Anodized Aluminum
• Seals: Oil resistant rubber seals
• Spool: Aluminum
• Other Internal Parts: Stainless Steel, Brass, Aluminum
• OPTIMA air control valves offer high flow performance and reliability
• Compact size
• High flow
• Quick response
• Highly reliable spool technology
• 3 and 5 WAYS, 2 and 3 positions
• Designed for in-line or bar manifolding
• Pushing the lever shifts the manual return valve. The valve remains in this positions until the lever is pulled back
HOW IT WORKS
Pushing the lever shifts the valve
The valve remains in this position until the lever is pulled back
