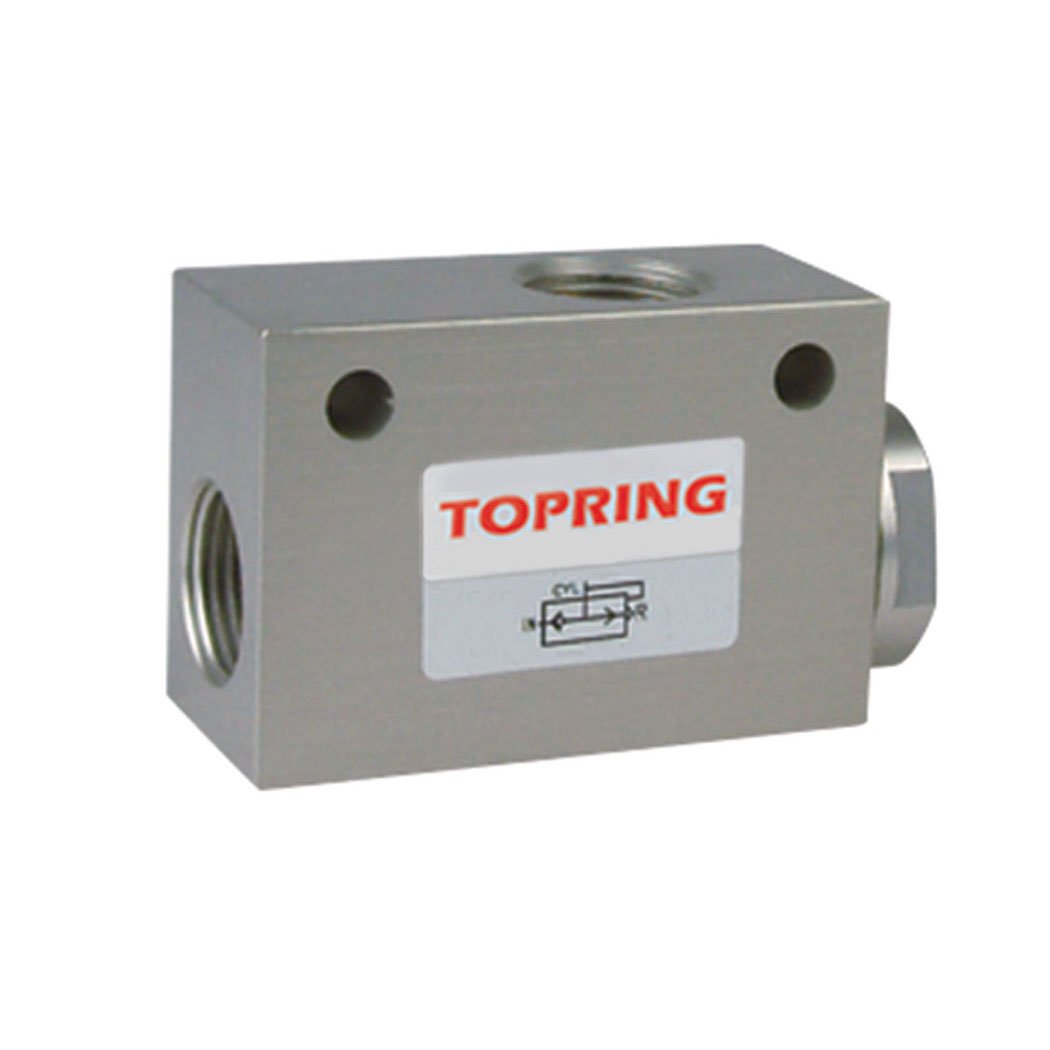

Aluminum Quick Exhaust Valve 3/8 (F) NPT 81 SCFM
Aluminum Quick Exhaust Valve 3/8 (F) NPT 81 SCFM
Description
Compressed air is vented directly to the atmosphere, reducing back pressure and ensuring a fast, smooth, and efficient cylinder return.
Compact, lightweight, and easy to install near the cylinder, this high-performance pneumatic valve provides a high air flow rate and exceptional responsiveness, enhancing the speed, performance, and productivity of industrial compressed air systems.
Technical Specifications
- Product Series85
- Product TypeExhaust Valves
- Nominal Airflow Rate (SCFM)81
- Maximum Inlet Pressure (PSI)140
- Check Valve IncludedNo
- With ExhaustYes
- Adjustability CapacityNo
- Minimum Fluid Temperature (°C)-10
- Maximum Fluid Temperature (°C)80
- Inlet Connection TypeThreaded
- Inlet Connection SubtypeNPT
- Inlet Nominal Size (Imperial)3/8 in
Documents
There are no documents available.
Warranty
G1: 1 Year Warranty
The replacement warranty (G) means that the product, or parts of the product, may be replaced by a new product and/or parts or equivalent. The warranty covers any manufacturing or material defect. The warranty does not cover installation and/or removal costs incurred by the customer nor shipping costs.
Failure to comply with the technical specifications, failure to follow the guidelines in the installation guide and/or the technical sheet, inappropriate or excessive tightening, misuse and/or abuse, failure to comply with the maintenance guidelines, normal wear, contamination and/or corrosion, neglect/accident, unauthorized repair attempt and/or disassembly, alteration of the product, assembly with incompatible products.
If the product contains one or several parts with a 1-month limited warranty (GL), these parts will be excluded from the 1-year warranty (G1).
Disclaimer
Please note that while we make every effort to accurately represent our products on our website, slight variations in design and appearance may occur due to factors such as manufacturing processes and materials used.
