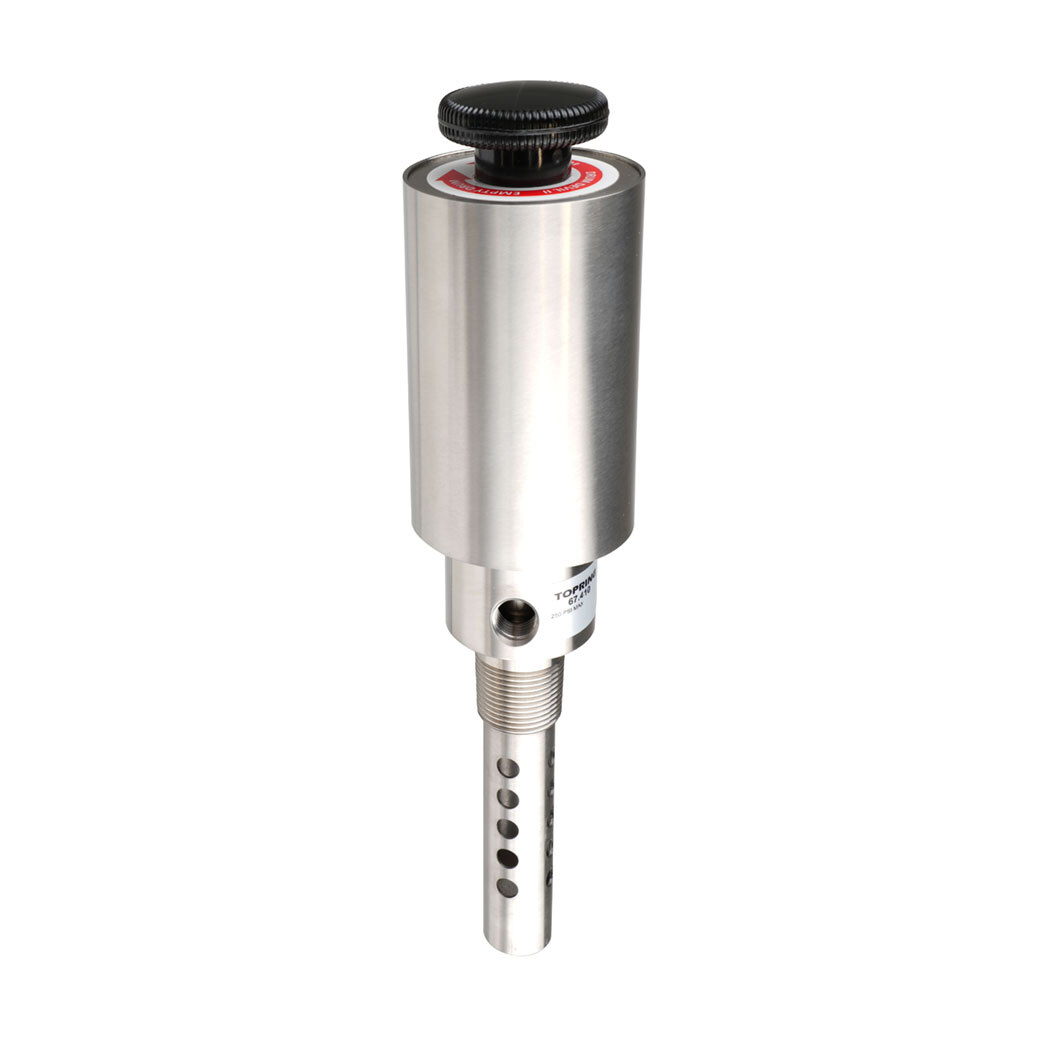

• Vacuum/pump unit
• Working Pressure Range: 80 to 100 PSI
• Air Consumption: 28 SCFM at 80 PSI
• Vacuum: 8.5" Hg at 80 PSI / 115" in H2O
• Noise Level: 78 Db
HOW IT WORKS
The suction pump is activated with compressed air which passes at a very high speed through an orifice of 0.002", creating a vacuum of 8.5 Hg at 80 PSI in the drum
Draining or filling the 205 L barrel takes less than 2 minutes
• Static electricity caused by friction in the vacuum unit can be a fire hazard if used to pick up flammable liquids
• Do not use with plastic drum
• Ideally suited for recovering a wide variety of wet materials such as coolants, hydraulic oils, non-flammable liquids, sludge, wet chips, and waste water
• Collects high viscosity liquids with efficiency
