Technical specifications and certifications

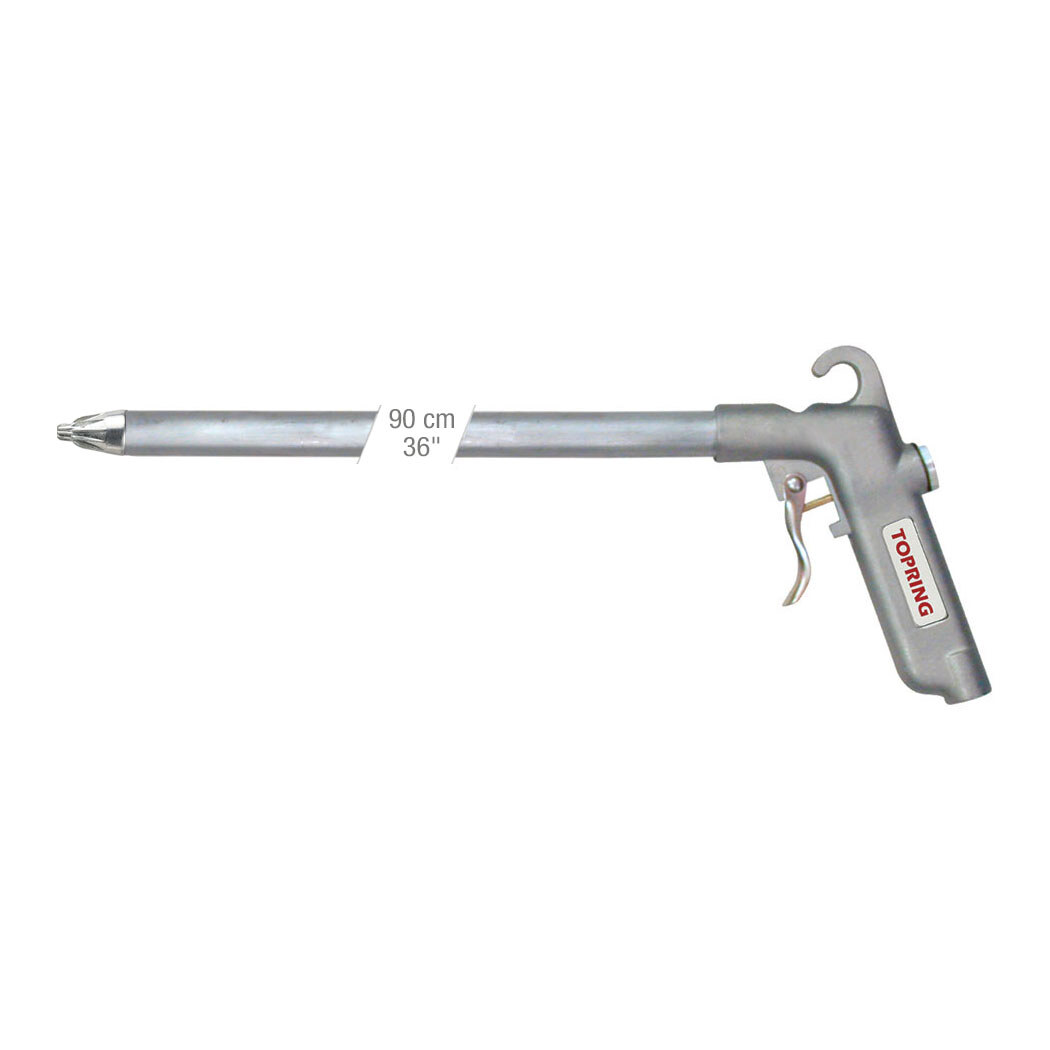

• With 90 cm (36") tube
• Maximum Output Thrust: 1.5 lbf
• Noise Level: 99 dB
• Air Consumption: 29 SCFM
• Maximum Working Pressure: 120 PSI
• Working Temperature: -40 to 65 °C
• Connection: 1/4 (F) NPT

Material(s):
• Body: Cast Aluminum
• Nozzle: Aluminum alloy, brass or stainless steel
• Tube: Durable cast Aluminum or stainless steel
• Valve: Brass
• Springs: Stainless steel
• Seals: Nitrile rubber

Features and benefits

• Provides extra high thrust with reduced air consumption
• Unique coanda nozzle design reduces noise by up to 6 to 20 dB over conventional blow guns
• Should the tip of the nozzle be blocked, the entire airflow will be diverted through the narrow openings around the nozzle so the static pressure remains under 30 PSI (meets OSHA standards)
• Long tube models for hard-to-reach areas
• Magnetic hook option for easy storage

Operation and installation

HOW IT WORKS: COANDA NOZZLE
High-speed air jets exit from narrow openings around the nozzle, adhering to the conical face of the nozzle. The drive of the ambiant air allows an increased air thrust with a low noise level
Should the tip of the nozzle be blocked, the entire airflow will be diverted through the openings of the conical tip so the static pressure remains under 30 PSI (meets OSHA standards)
In addition, whisper jet blow gun also meets OSHA standards for noise level

Caution

• Users should never use blow guns to clean themselves
• A vacuum or a safety cleaning unit should be used instead

Applications

• Cleaning equipment in paper and textile mills, metal cutting and woodworking equipment for blowing floor debris into piles, cleaning masonry forms, tanks, ovens, large molds, as well as machinery and storage areas
